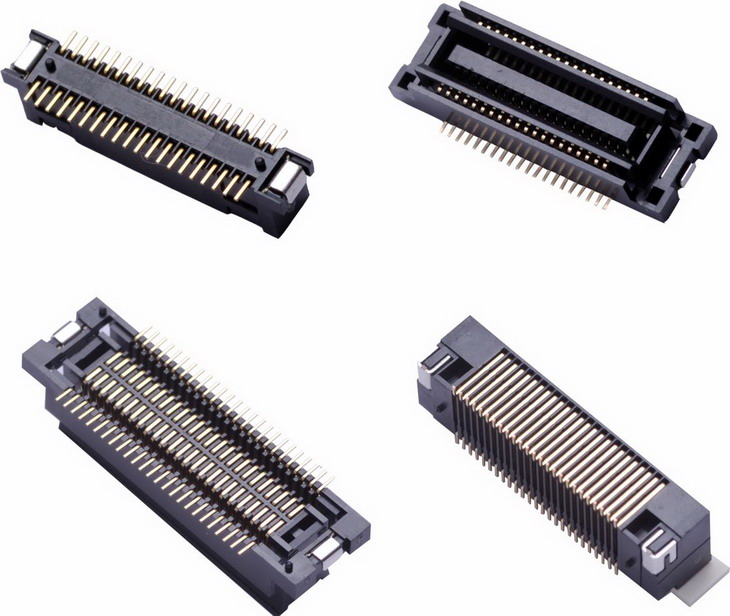

B0.8-1系列
◆ 额定电流： 0.5A
◆ 额定电压： 50V AC/DC
◆ 使用温度： -40℃ ～ +105℃
◆ 耐电压： AC 250V/1分钟
◆ 符合RoHs标准产品
◆ 产品部件材质：
端子: 铜合金 镍底镀金
胶芯: 耐热性树脂 UL94V-0 黑色
◆ 极数：30-120Pin、SMT型

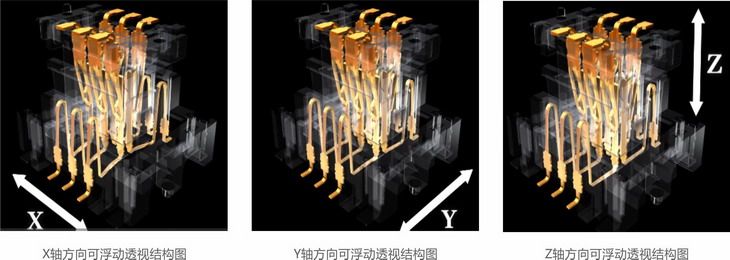

◆The FPC of 0.8mm is designed by floating structure , All the three direction of X,Y,Z canfloat about 0.5mm.
◆ The floating board to board connector for automobile electronic design, the utility model has the advantages of:
①XYZ three axis direction can float, that can effectively prevent resonance, improve contact Performance and have good seismic performance;
②The position deviation of the welding plate can be absorbed, reduce the load of the terminal welding parts, and also can effectively prevent the defects of welding;
③Can realized several Connectors assembly on one PCB at the same time.
◆ 0.8mm间距采用了可浮动构造设计，X-Y-Z方向均有 0.5mm可浮动量。
◆ 可浮动的板对板连接器，专为汽车电子设计，其优点：
①XYZ三轴方向可浮动，有效地防止共振，提高接触 性能，抗震性好；
②可吸收焊接贴板位置偏差 减轻端子焊接部位的负荷， 有效地防止焊接不良；
③可实现同一PCB多个板对板连接器同时装配。
