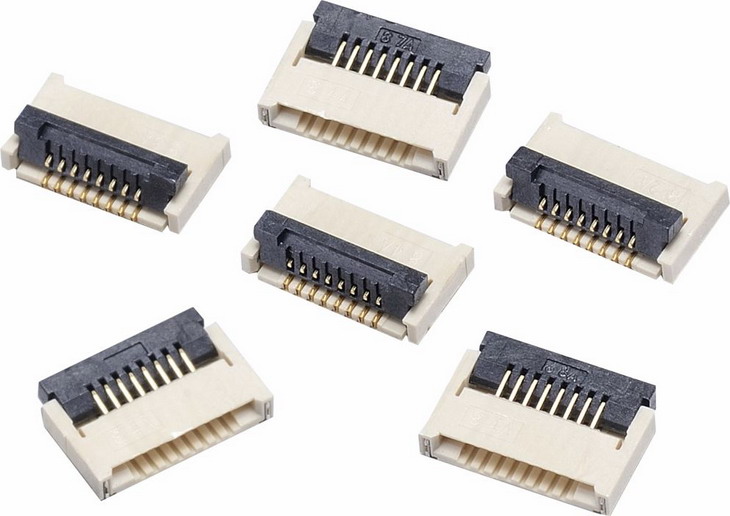

0.5-7系列
◆ 该系列产品高度1.2mm，间距为0.5mm的紧凑设计。
◆ 上下接点通用型FFC/FPC的连接器。
◆ 采用后翻盖式结构，同一连接器可上下分别使用。
◆ 通过采用凹缘式（带卡位）FFC/FPC，可防止FFC/FPC
未接插、错误接插，可提高FFC/FPC的保持力。
◆The height is 1.2mm, The spacing of compact design is 0.5mm
◆The height is 1.2mm, The spacing of compact design is 0.5mm
◆A general FFC/FPC connector With upper and lower contact.
◆Use the after flip cover type structure, the same connector can be used up and down separately.
◆TO use concave edge type ( locating ) , can prevent FFC/FPC no plug or error connection, can improve the retention of FFC/FPC.
